| 5-Port Fast Ethernet Unmanaged Switch network ethernet switch rj45 lan hub internet splitter ethernet hub Plug and Play |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -10% |
| Product id | 33004887859 |
| Vendor | Fanakm Communication Equipments Store |
| Category | Computer & Office - Networking |
Description :
5-Port Fast Ethernet Desktop Switch
Overview:
F1005 provides 5 10/100Mbps autosensing ports and all ports support Auto MDI/MDIX for parallelwire and crosswire, making this device not only can be connection to common terminal equipments, but also can be cascade connection to other nerworking equipments to extend your networking easily.F1005 can provide you a easy, economic, high-performance solution for 100M networking, which is your ideal chioce for high-speed networking
Features:
-
Provide 5 10/100Mbps auto-negotiation ports
-
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x
-
Supports MAC address self-learning and auto MDI/MDIX
-
Supports full-duplex 802.3x flow control and half-duplex backpressure flow control
-
Plug and play, no need configuration
-

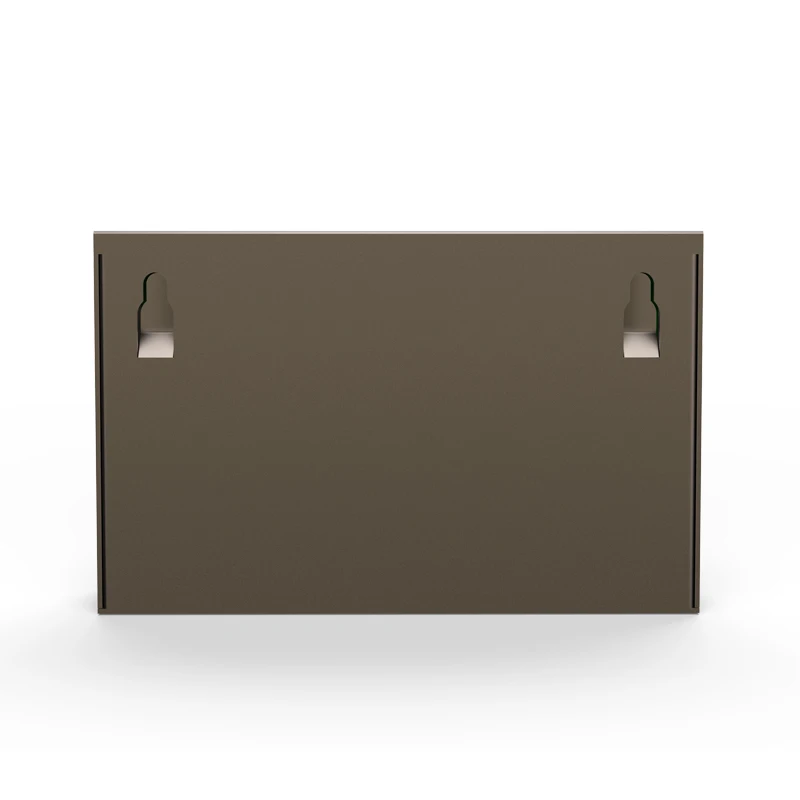

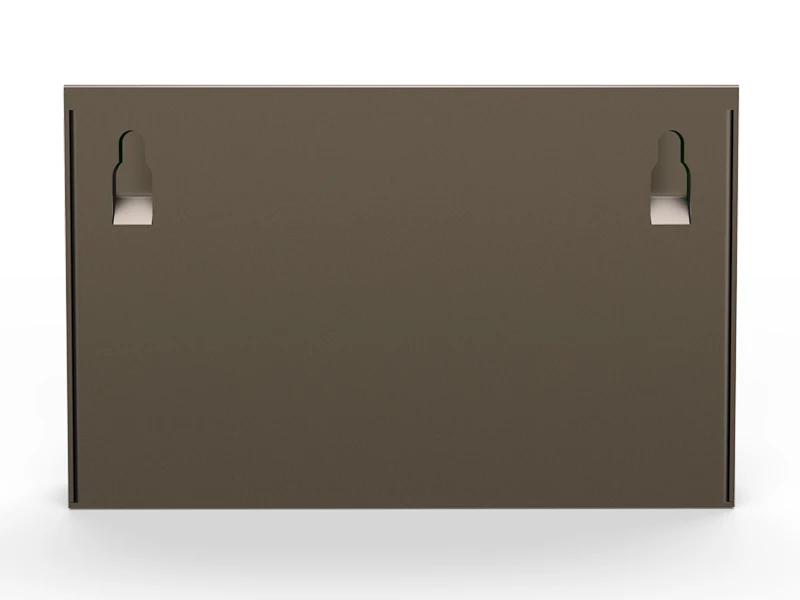

Desktop or wall mounting Design , steel case

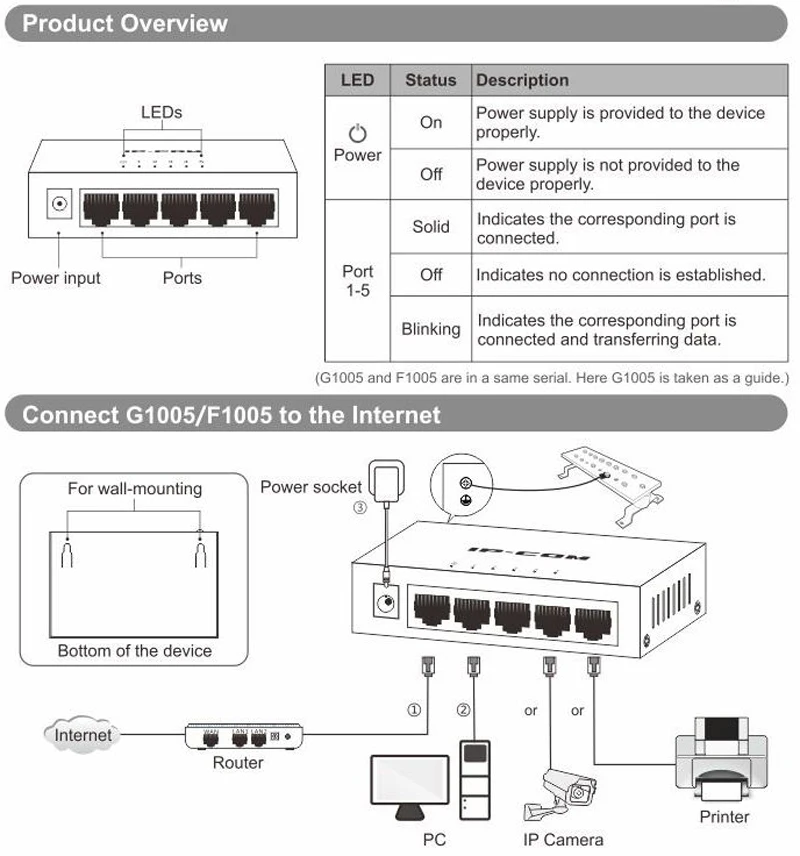

Application
Specification:
Standard&Protocol
IEEE 802.3、IEEE 802.3u、IEEE 802.3x
Transmission Media
100BASE-TX: Cat.5, Cat.5e or Above（≤100m）UTP/STP
Interface
5*10/100Mbps auto-negotiation RJ45 ports, auto MDI/MDIX
LED
1*power LED，5*10/100Mbps Link/Act LEDs
100mm×64mm×25mm(W*D*H)
Forwarding Mode
Store-and-Forward
MAC Address Table
1K
10BASE-T：14881pps/port
100BASE-TX：148810pps/port
Backbound Bandwidth
1.0Gbps
Power
Input : 100~240V AC，50/60Hz
Output : 5V DC，0.6A
Operation Temperature:-10°C~45°C
Storage Temperature:-40°C~70°C
Operation Humidity:10%~90% RH（non-condensing）
Storage Humidity 5%~90% RH（non-condensing）

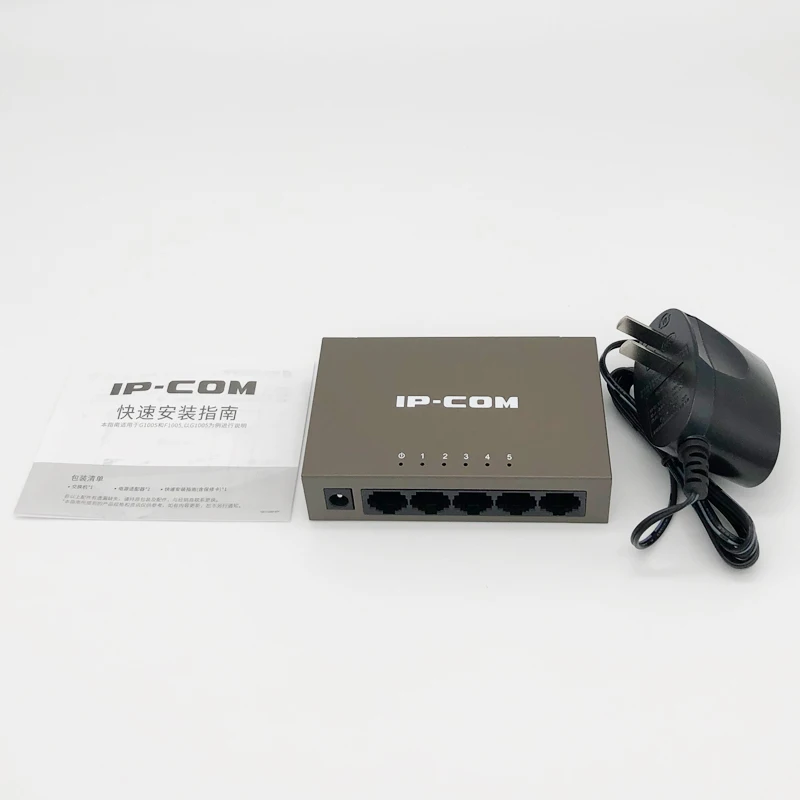

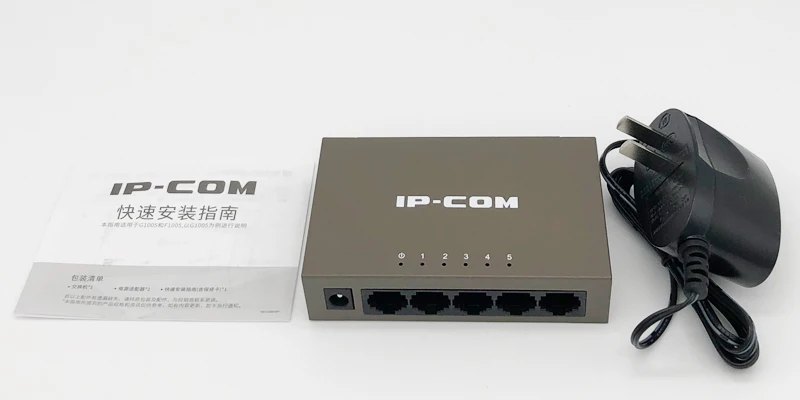

1 * F1005; 1*Power Adapter; 1 * User Manual

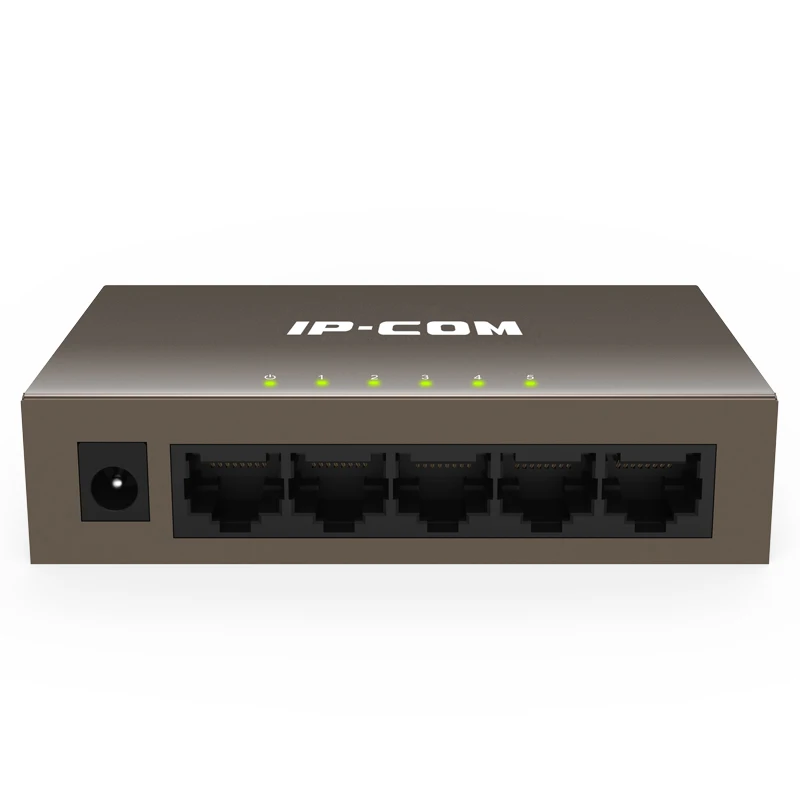

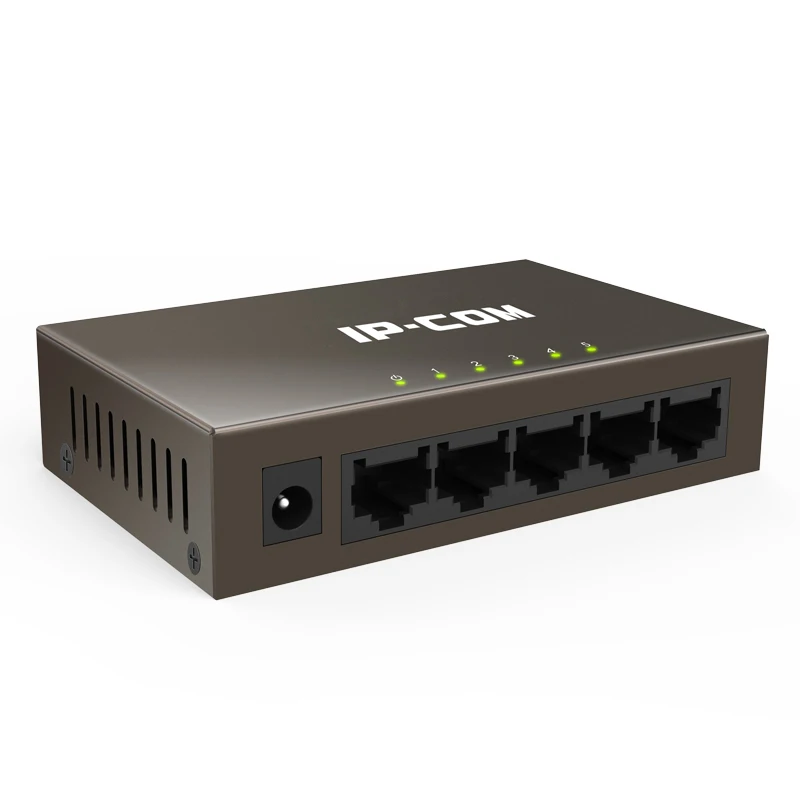

Detailed pictures:
Detailed pictures:
Check This Video Reviews How to Set Up an Ethernet Switch | Internet Setup
Check This Video Reviews What Is an Ethernet Switch | Internet Setup
