| GPON EPON SOLUTION SUPPLIER 8 Port Gigabit WEB Managed Reverse PoE Switch pcb board Support VLAN IGMP |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32872947435 |
| Vendor | gdpoenet AliMall Store |
| Category | Computer & Office - Networking |
Description :

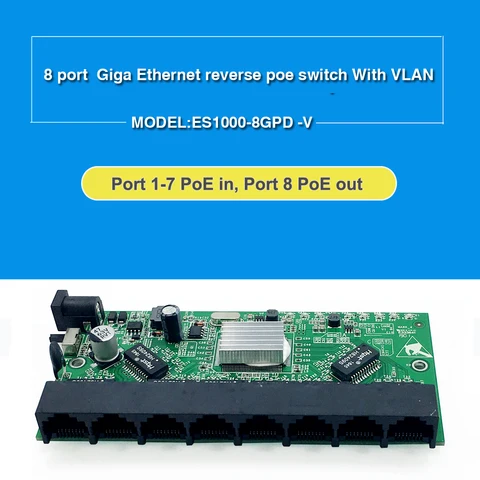

8 port 10/100/1000M Ethernet Manged reverse poe switch
ES1000-8GPDM Reverse PoE Switch is managed gigabit switch, with 7-Port PoE provides the
seamlessnetwork connection. It integrates 10/100/1000Mbps Fast Ethernet network capabilities.

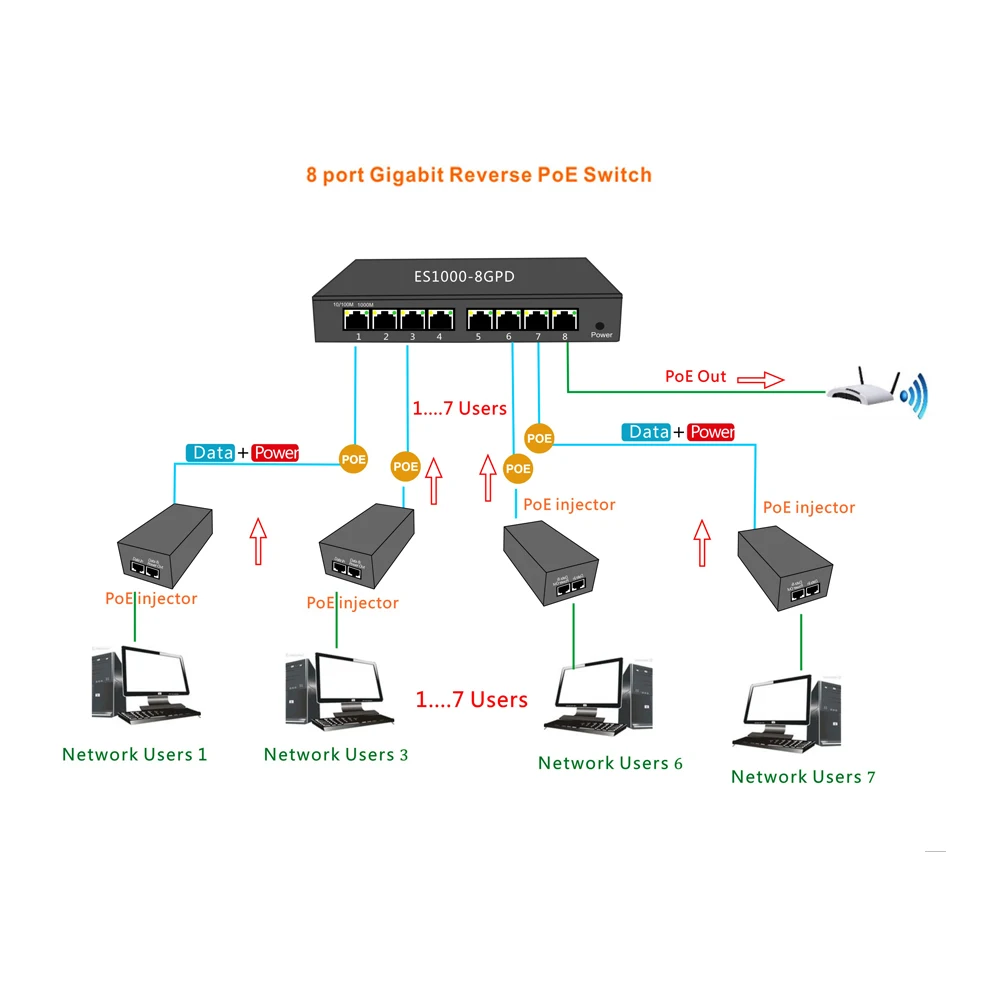

Port1-7 for PoE In,Port 8 can do PoE out,Support 24-48V Passive PoE compliant PSD and PD.
Features：
1. Port 1-7 for PoE In,Port 8 for PoE Out.

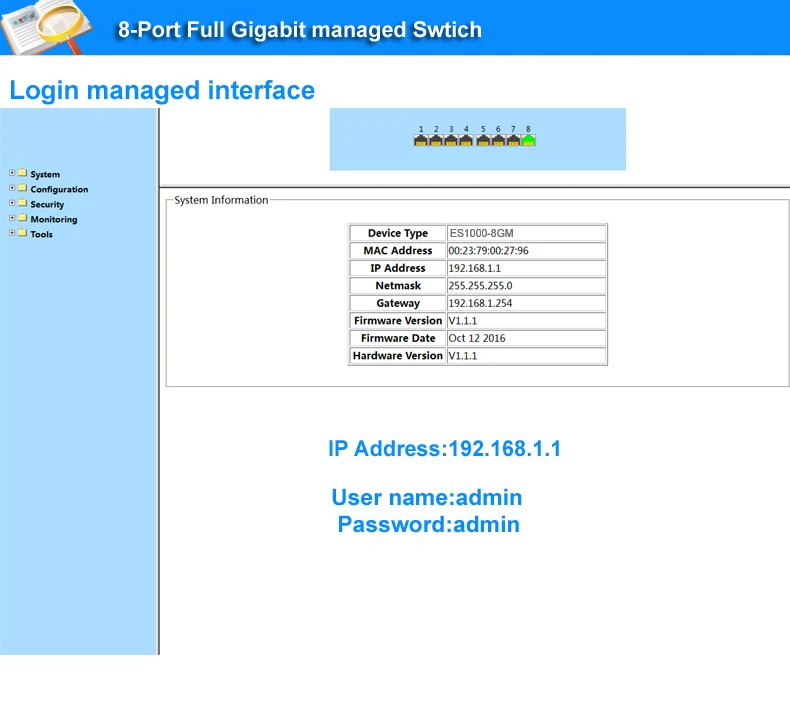

2. Support silmp web management, QOS,VLAN,IGMP , link aggregation
3. Support 24v-48v Passive PoE compliant PSD and PD.
4. Output 12vdc power supply via dc jack, which can be supplied to ONT
5. Plug and play
6. Support Green Ethernet
HARDWARE FEATURES
| POE | port | PoE in : 1-7 port PoE out: 8 Port |
| pin | 45+，78- | |
| Poe voltage | 24-48V | |
| speed | 8 10/100/1000Mbps RJ45 Ports | |
| distance | 100 meters | |
| power ouput | 12vdc | |
| standard | IEEE802.3 10bae-t IEEE802.3U 100base-t IEEE802.3U 1000base-t | |
| Fan Quantity | Fan Quantity | |
| Dimensions ( LxW ) | 160x90mm | |
PERFORMANCE
| Switching Capacity Packet Forwarding Rate | 16Gbps 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
SOFTWARE FEATURES

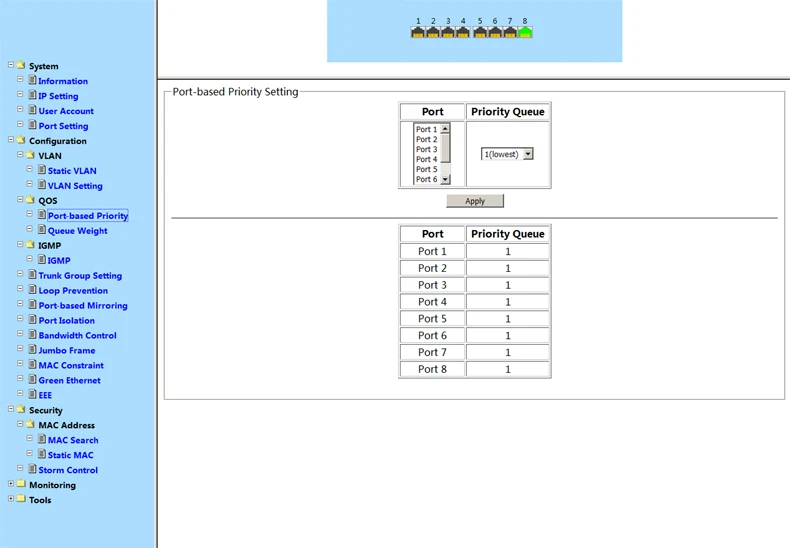

| Quality of Service | Support Port-based/802.1p/DSCP priority |
| L2 Features | IGMP Snooping Supports 128 Groups Supports static link aggregation |

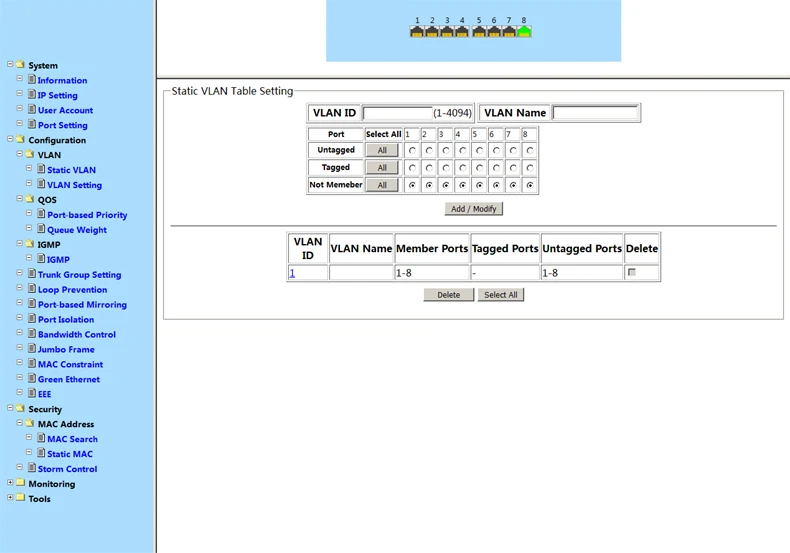

| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| Transmission Method | Store-And-Forward |
OTHERS
| PAckage | ES1000-8GPDM-ＰＣＢＡ |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
Check This Video Reviews GPON EPON SOLUTION SUPPLIER 8 Port Gigabit WEB Managed Reverse PoE Switch pcb board Support VLAN ...
Check This Video Reviews TOTOLINK Dominican Republic releases 8 Ports Reverse PoE Switch
Best Price Comparison With GPON EPON SOLUTION SUPPLIER 8 Port Gigabit WEB Managed Reverse PoE Switch pcb board Support VLAN IGMP
8 port 10/100/1000M Ethernet unmanaged reverse poe switch 7 Port PD Switch 24v reverse poe switch of pcba board
Buy Now On Aliexpress
8 port 10/100/1000M Ethernet reverse poe switch With VLAN
Free shipping 8 reverse switch pcb board 8 port 10/100M Ethernet reverse poe switch
Buy Now On Aliexpress
GPON/EPON SOLUTION SUPPLIER With VLAN switch 24V 8 port gigabit switch realtek RTL8370N reverse poe Switch
Buy Now On Aliexpress
8 port 10/100/1000M gigabit reverse PoE switch plus 2 SFP optical fiber Slots
Buy Now On Aliexpress

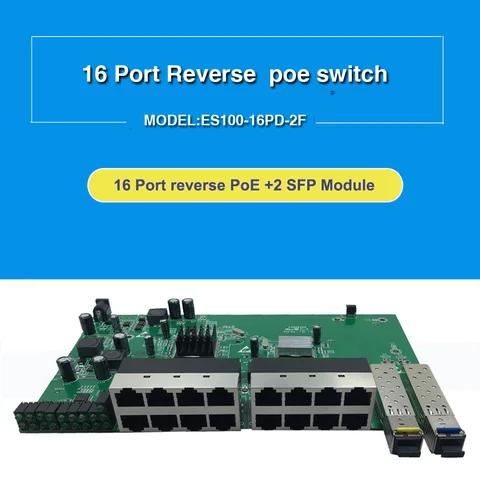

With VLAN GPON/EPON SOLUTION SUPPLIER 16 ports 10/100M reverse POE switch with 2 gigabit sfp fiber ports PCB
