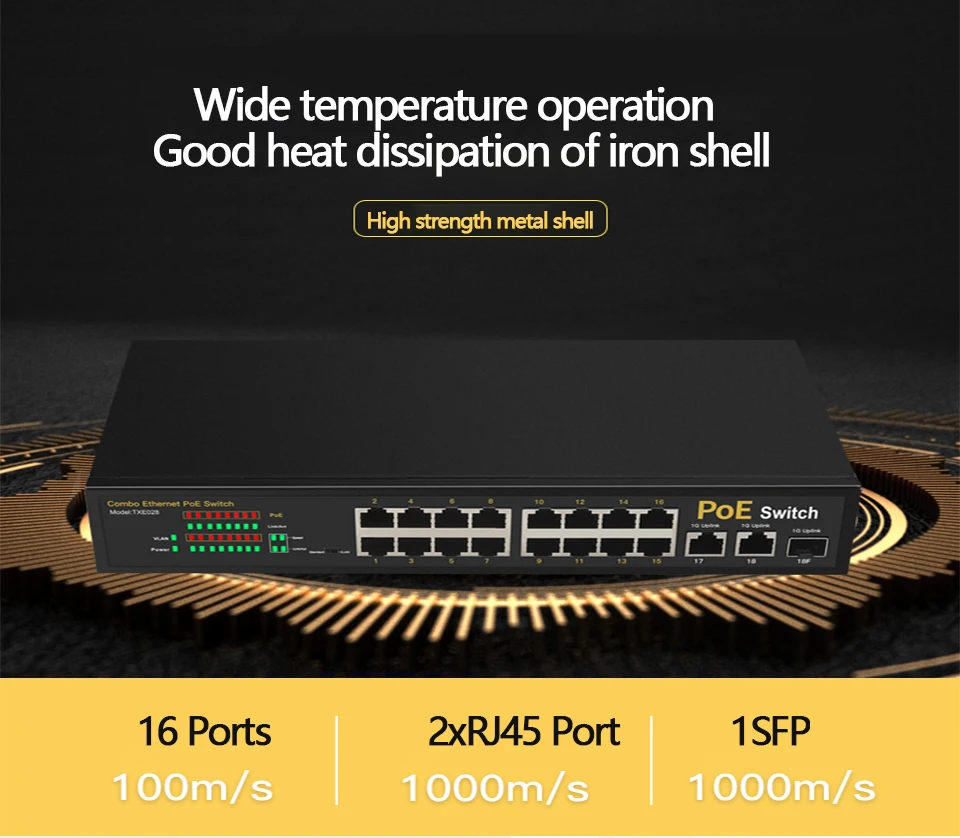

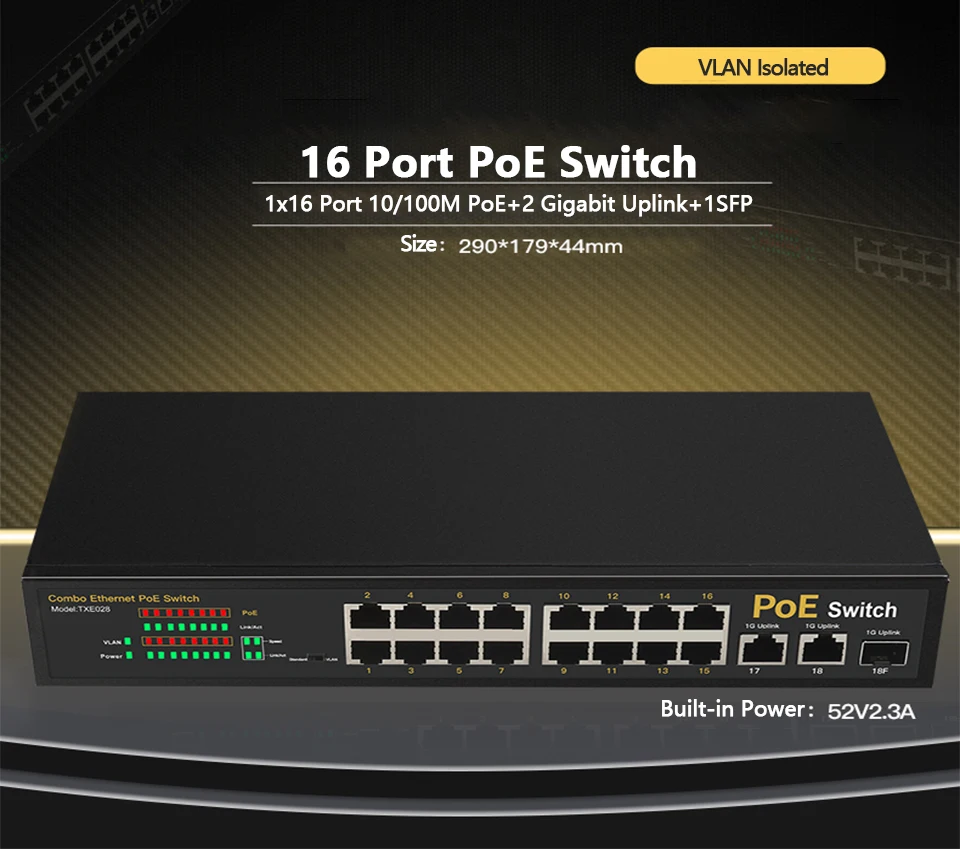

| 16 Port PoE switch for ip camera with 2 port 1000M uplink 1 port SFP PoE Ethernet Switch PoE 48V switch |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -5% |
| Product id | 33027335458 |
| Vendor | winsonbook Store |
| Category | Computer & Office - Networking |
Description :
| Model | WSP1621POE |
| Product | 16+2+1 PoE Switch |
| Fixed Port | 16*10/100Base-TX PoE port（Data/Power） 2*10/100/1000Base-TX uplink RJ45 port (Data) 1*1000M SFP |
| PoE Port | 1-16 port supports PoE(first port supports HiPoE_60W) |
| Function | N:(Standard normal） S:(Super mode)（specific port refers to user manual） |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at |
| PoE Standard | IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT（X）Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 20Gbps |
| Packet Forwarding | 6.62Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Power Pin | 1/2(+)，3/6(-) |
| Single Port Power | Average 15.4W；MAX 30W |
| Total power/Input voltage | MAX 300W （AC100-240V 50/60HZ） |
| Watt | Standby Power Consumption：≤8W； |
| LED Indicator | POWER:Power LED(over-power LED) 19:(SFP LED） Uplink:(Link LED=10/100M Link、1000M=Gigabit Link) Port:(Orange=PoE LED+Green=Link LED） S:(Super mode LED) |
| Power Input | Built-in power AC：100～240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size（L*W*H） | 290mm*178mm*44mm 410mm*275mm*95mm |
| N.W/G.W（kg） | 1.6kg/2.4kg |
| Installation | Rack-mount（optional machine hanger spare parts） |
| Lightning protection level | 3KV 8/20us； IP30 |
| Certificate | CE mark, commercial；CE/LVD EN60950； |
| Warranty | Whole device for 3 year(Accessories not included) |
