Description :
Product Description
Gigabit Ethernet POE switch stock 5 port ethernet switch module network switch and security camera system
This product is customized to meet customer requirements. This product is a unmanaged commercial grade Ethernet switch, supports 5 Gigabit Ethernet ports, Ethernet port pin way. Support 1 DC 9 ~ 15VDC power input. Support LED lights
out of the mouth, 5 LINK lights, 5 R / W lights, power lights.
Communication interface
1) Gigabit Ethernet interface
Interface type: 8 pin, support MDI / MDI-X adaptive, PIN Socket can be foolproof with the lock, so as not to shake off.
Transmission distance: Unshielded twisted pair (UTP) or shielded twisted pair (STP), 1000Mbps, connecting with super-5
and class-6 cable of 120Ω, transmission distance up to 100m.
2) Power Interface
Interface type: PH type, two 3.96MM pitch terminals. PIN Socket can be foolproof with the lock, so as not to shake off
3) All the above interfaces are flat inserted as the direction of the diagram, making the sub-wiring can be thin.
4) The lights use SMD up lights to connect lights 1x5, speed lights 1x 5 (from left to right order 12345).
5) Connect the signal to another 5x2 2.0 pitch row PIN.
6) The speed signal is connected to the 5x2 2.0 Pitch PIN.
7) The power supply signal is connected with 1x2 1.5 pitch PIN.
| Indicator light | LED | Indicates status | Description of working status |
| Power Indicator | PWR (red) | On | Indicating that the power supply is normal; |
| Off | Indicates that the power supply has no power or is operating abnormally. | ||
| SMT LED, yellow for the port speed indicator, green light for the port link status indicator. | |||
| Ethernet interface connection indicator (1 ~ 5) | LINK/ACK (green) | On | It indicates that the physical port of the switch has a connection; |
| Flash | It indicates that the physical port of the switch has data activity. | ||
| Off | It indicates that the physical port of the switch has no connection. | ||
| Ethernet interface speed indicator (1 ~ 5) | On | 1000M working mode | |
| Flash | 100M working mode | ||
| Off | 10M working mode | ||
1) Support IEEE802.3, 802.3u, 802.3ab, 802.3x standard
2) Supports five 10Base-T / 100Base-T (X) / 1000Base-T (X) Ethernet Gigabit RJ45 ports
3) Support full / half duplex mode, MDI / MDI-X automatic detection
4) Support full wire-speed forwarding non-blocking communication
5) Support 9 ~ 18VDC power input

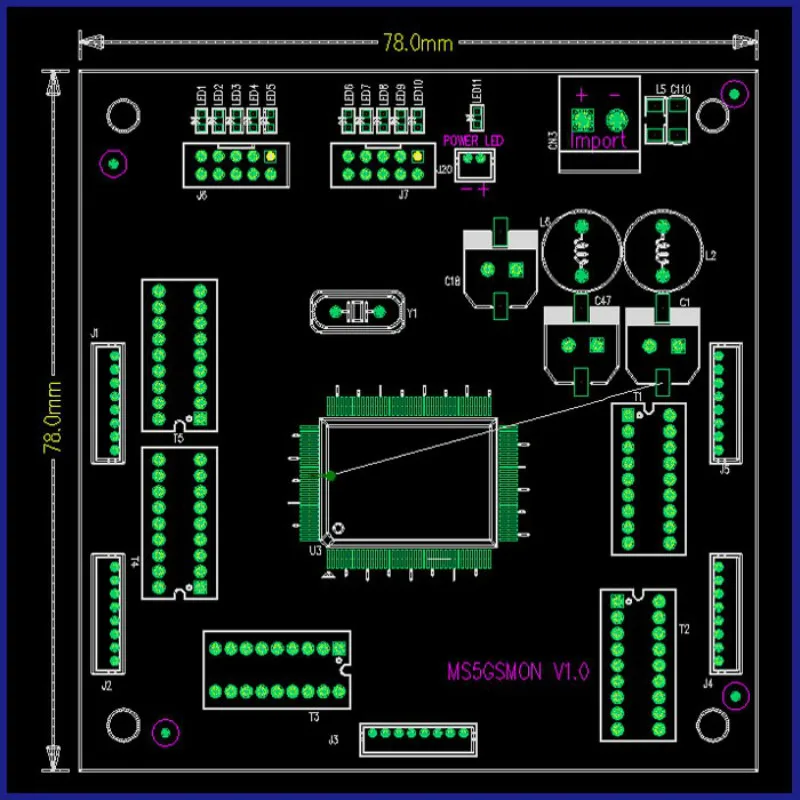

6) Version of the sub-layout is small, square, 78X78MM

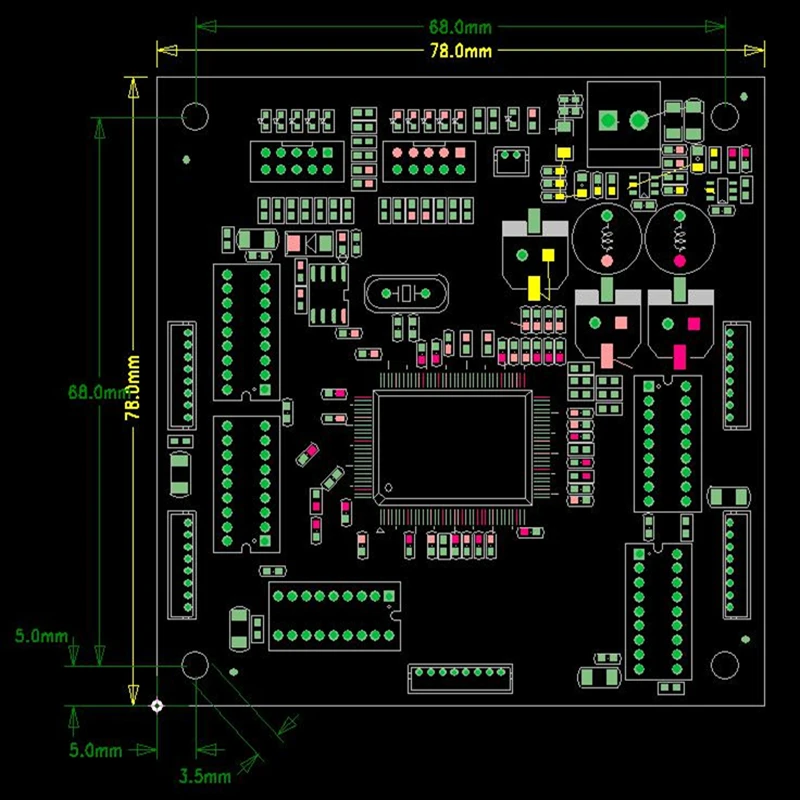

7) There are four holes in the corner, the positioning hole is appropriate circumstances, recommended hole diameter 3.5mm.

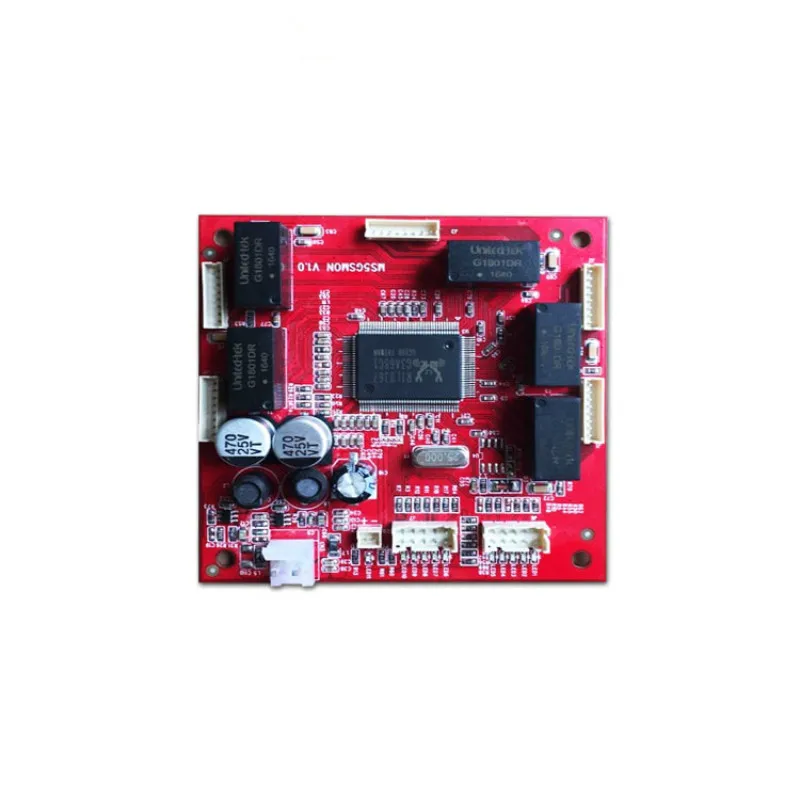

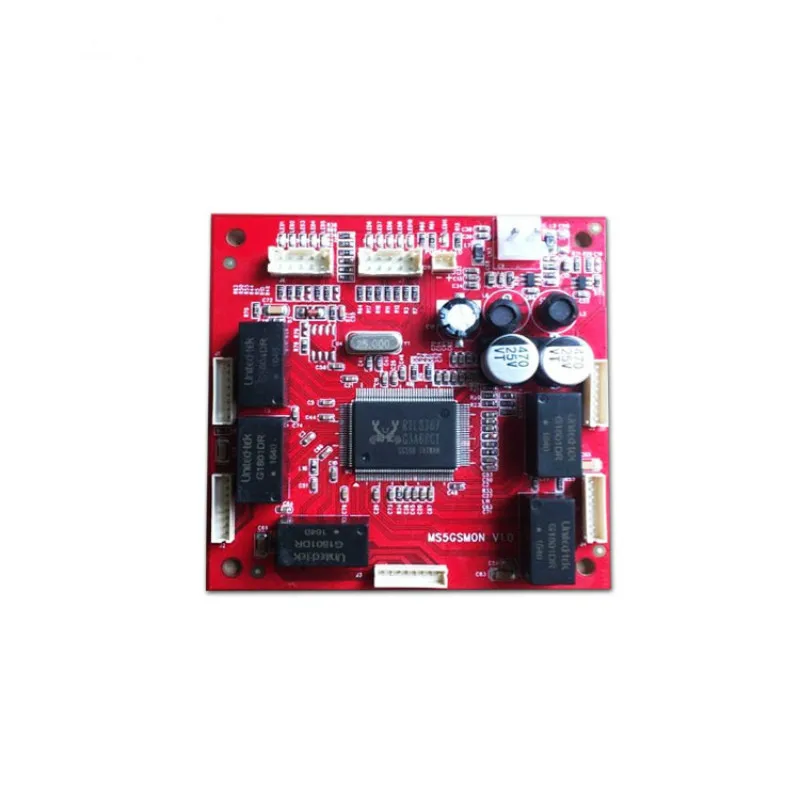

8) The module is labeled MS5GSMON V1.0
9) Resistance capacitors use industrial solid-state capacitors.

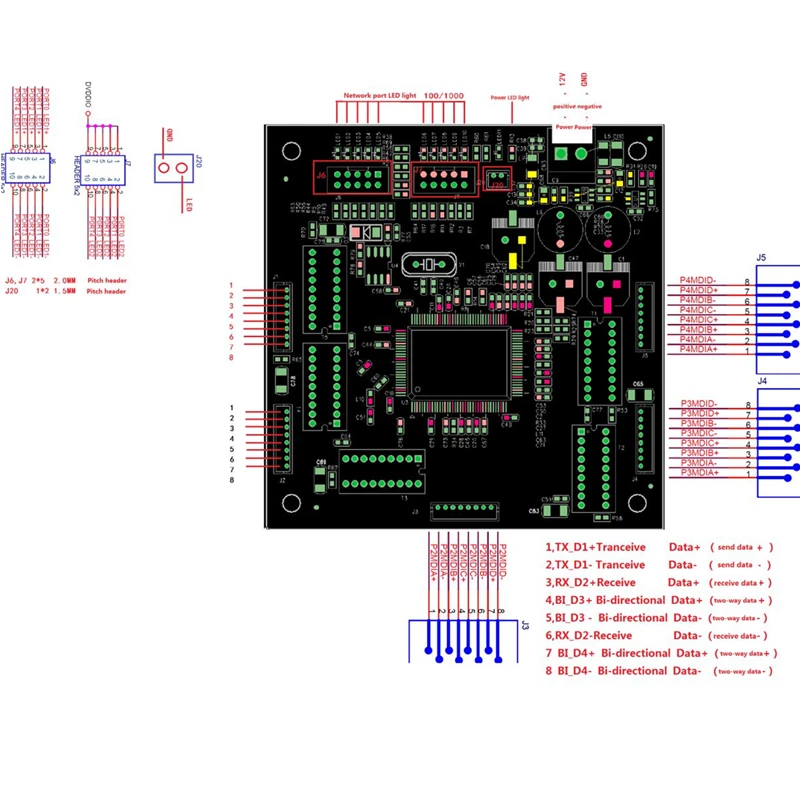

Structure Diagram
Packaging & Shipping
Packing: Use the Standard paper carton with K=K material, also accept redesign box.
Shipping:
We have 5 years partner forwarder can provide you a very competitive frieght fee, help customer to save more cost.
1) Sample will use the door to door express shipping, normally 3-5days to destination.
2) Small batch order advice airport to airport by air shipping, normally 5-7days to destination.
3) Bulk order will choose sea shipping, normally 20-35days to destination port.
1) Samples box: 10pcs/carton
2) Standard box: 100pcs/carton
3) Accept redesign box
Our Services
1) We can flash customer firmware, ODM customer baseboard or redesign whole board,
2) we can supply software design service.
3) All products have been double checked and packed in good condition before dispatching.
4) All products have 1 year warranty.
5) Provide OEM/ODM service.
