| Bluetooth Audio Receiver Transmitter V5.0 Wireless Audio EDR Dongle 3.5mm Jack Aux 3 in 1 Adapter for Home TV Headphone PC Car |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -66%New User Deal |
| Product id | 4000174563338 |
| Vendor | FedTech Store |
| Category | Computer & Office - Networking |
Description :
Dear friends, thanks for choosing our products.In order to better use the functions of this product,please read this user manual before use.
ZF-360 is a Bluetooth transceiver developed with the latest Bluetooth version 5.0. This product can be used as a Bluetooth audio transmitter to wirelessly transmit the sound of TV and other audio sources to Bluetooth headsets or Bluetooth speakers (on computers and Android systems). Under, support the direct transmission of audio with data lines, without the need to plug 3.5mm audio cable). It can also be used as a Bluetooth audio receiver to instantly turn a wired speaker into a Bluetooth speaker, freeing you from the shackles of cable and enjoying wireless music.
User Manual
1) Transmitter mode
a) Connect the audio interface marked by 'TX' to the audiosource devices (TV, computer, radio, MP3, etc.) with 3.5mm audio cable.
b) Turn the toggle switch to 'TX' side, long press the 'Power' button 2 seconds to start up, and the red indicator light will flashes slowly.
c) Turn on the Bluetooth receiving device you want to pair and enter the Bluetooth pairing mode. The adapter will automatically pair with it, and the red indicator light will stay on after the connection.
Note: The '+, '-' and 'Power' buttons are invalid in this mode.
2) PC transmitter mode
a) Connect the USB charging port and the computer USB port with USB data cable.
b) Turn the toggle switch to the 'TX' side, long press the 'Power' button 2 seconds to start up, and the red indicator light will flashes slowly.
c) Turn on the Bluetooth receiving device you want to pair and enter Bluetooth pairing mode. The adapter will automatically pair with it, and the red indicator light will stay on after the connection.
Note: '+' button: next track (press), just can control music player; '-' button: previous song (press), just can control music player; 'Power' button: pause/resume music (press),just can control music player.
(in this mode, the '+' '-' button cannot control the volume ofthe computer system.)
3) Receiver mode
a) Connect the audio interface marked by 'RX' to unbluetooth-enabled speaker or headset with 3.5mm audio cable.
b) Turn the toggle switch to the 'RX' side, long press the 'Power' button 2 seconds to start up, and you will hear the prompt 'Bluetooth receiver mode', and the blue indicator light will flashes slowly.
c) Turn on the phone's Bluetooth function, search for and connect to the Bluetooth device named 'ZF- 360', and the blue indicator light will stay on after the connection.
Note: '+' button: next track (press), volume up(press&hold);'-' button: previous song (press), volume down(press&hold);'Power' button: pause/resume music (press).
Charging
The red indicator light is always on when charging, and the indicator is off after charging is completed.
3. Connect Issue
Automatic connection
After the product is turned on, it will automatically pair the last connected device, and if it is not connected within 3 to 5 seconds, it will automatically enter the searchable pairing status.
Disconnection
When the Bluetooth function of the mobile phone is off or the Bluetooth is out of the connection range, the receiver will automatically enter the pairing state to wait for connection. If it is not connected to any device within 5 minutes, the receiver will automatically shut down.
Re-connection
In the connected state, press the '+' and '-' buttons at the same time, the voice prompts 'Disconnect', the red and blue lights flash alternately, the receiver waits for the connection;at this time, press the '+' and '-' buttons at the same time,you can re -connect the device you just disconnected.
4. Note
1) No driver required when using on the computer.
2) If there is a prompt that device cannot be recognized when transmitting audio on the computer, it means the USB port is not properly plugged in.
3) No need to use 3.5mm audio cable when transferring audio from computer with USB data cable.
4) When using USB data cable to transmit audio on the computer, the volume of the computer system can not be adjusted, only the volume of playback software (music player,video player) or Bluetooth speaker (Bluetooth headset) canbe adjusted.
5) This device does not support voice calls or voice assistantfunctions.
Specifications
Model: ZF- 360
Bluetooth version: Bluetooth V5.0+EDR
Bluetooth profiles: AVRCP(receiver mode only), A2DP
Input parameter: 5V 1A
Charging port: Micro USB
Receiver mode play time: 10 hours
Transmitter mode play time: 7 hours
Charging time: 1 hour

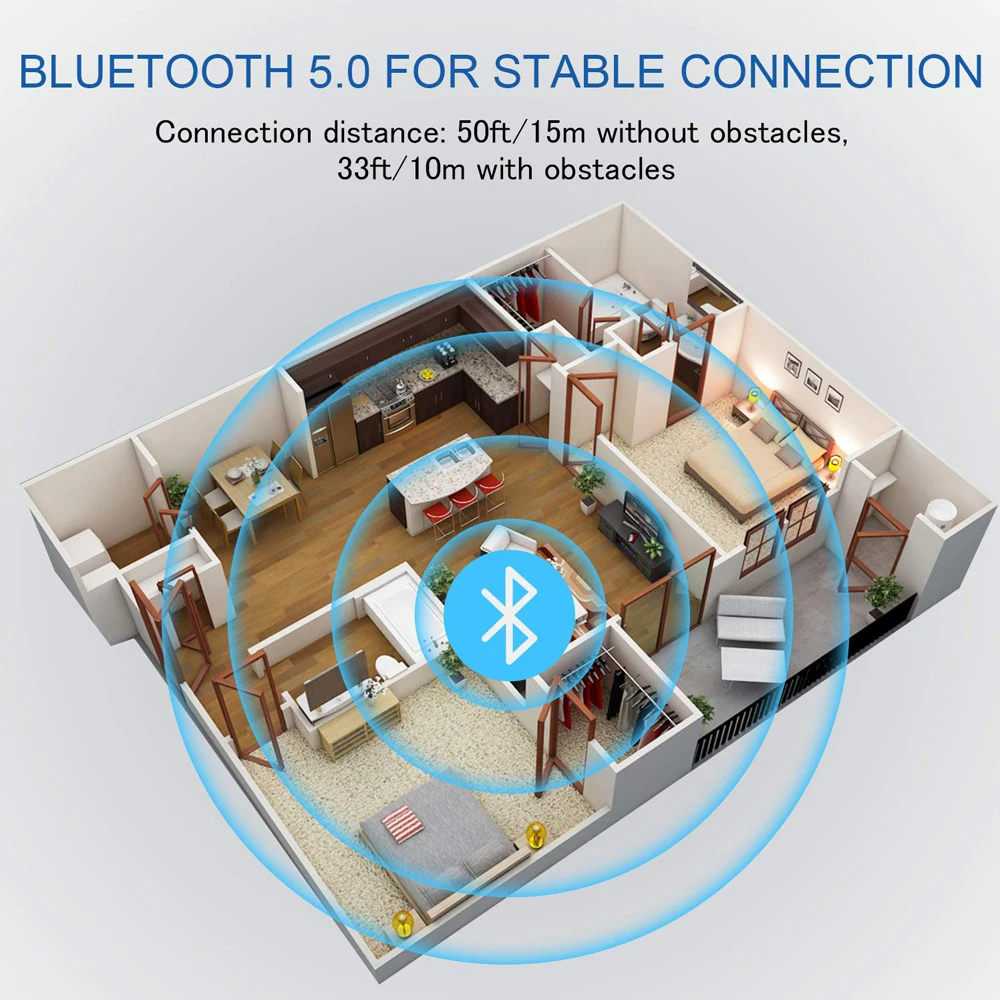

Working distance: 10-15m
Package
Bluetooth Adapter*1
3.5mm audio cable*1
USB Charging cable*1
Use Manual*1
